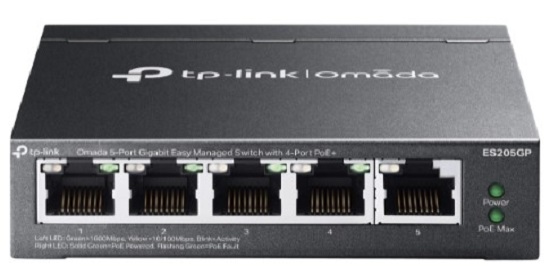

TP-Link ES205GP Omada 5-Port Gigabit, 4x PoE+, 65W

Popis produktu:

Omada 5portový gigabitový Easy Managed Switch se 4 porty PoE+
5× 10/100/1000Mb/s RJ45 portů (4× PoE+ s podporou standardu 802.3at/af)
Napájecí rozpočet 65W, až 30W pro každý PoE port
Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
Centrální správa přes cloud prostřednictvím webu nebo aplikace Omada
Až 250 m PoE, QoS, automatické obnovení PoE a izolace portů pro spolehlivou síťovou infrastrukturu pro dohled
Automatická prevence smyček, VLAN a IGMP Snooping
Bezhlučný provoz díky bezventilátorovému designu
Odolné kovové pouzdro a design pro umístění na stůl nebo montáž na stěnu

HARDWARE FEATURES
Interface: 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE) • Auto-Negotiation/Auto MDI/MDIX
Installation:  Desktop • Wall Mount
Physical Security Lock
Fan Quantity - Fanless
Power Supply - DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE Ports (RJ45)
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 4 ports
• PoE Budget: 65 W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery
• Up to 250m PoE transmission distance
Dimensions ( W x D x H ) 100×98×25 mm

PERFORMANCE
Switching Capacity - 10 Gbps
Packet Forwarding Rate - 7.4 Mpps
MAC Address Table - 8K
Packet Buffer Memory - 4 Mbit
Jumbo Frame - 15 KB

SOFTWARE FEATURES
Quality of Service:  Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features: Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast:
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN:
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method - Store-And-Forward

MANAGEMENT
Omada App - Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access - Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning - Requires the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration

OTHERS
Certification - FCC, CE, RoHS

Package Contents
• ES205GP
• Power Adapter
• Installation Guide
• Rubber Feet

Environment
• Operating Temperature: -20C~40C
• Storage Temperature: -40C~70C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
